Inner Diameter Question 2 weeks 2 days ago #62815

madsci954
Offline
New Member
Posts: 12
Thank you received: 4

I'm going to build my own electronics for my ASP saber, as want changeable fonts and a built in recharge port, and I don't feel like waiting for SF's solution. I have the part list made and I'm going to have a 3D printed chassis to support everything.

What I need to know is the inner diameter of the ASP saber body, specifically Body #10. I tried measuring several times and either came up with 1.00" or 1.10". Which is the correct ID?

The administrator has disabled public write access.

Inner Diameter Question 2 weeks 2 days ago #62825

Khang Offline New Member Posts: 13 Thank you received: 10	All SF sabers should have a 1.127" ID. For my installs, I've been using 1.11" chassis from Shapeways.
	The administrator has disabled public write access. The following user(s) said Thank You: RichellM, RotundChap

Inner Diameter Question 2 weeks 2 days ago #62830

jonnys95s10 Offline Premium Member Posts: 110 Thank you received: 89	I have body #2 and it measures 1.125" with my calipers. I'm not sure if bodies vary. I would think they would keep them all the same ID.
	The administrator has disabled public write access. The following user(s) said Thank You: RichellM, RotundChap

Inner Diameter Question 2 weeks 2 days ago #62832

Jaden Korr Offline Platinum Member "Remember, [Force] abilities are not inherently good or evil; it's how you use them." --Kyle Katarn Posts: 963 Thank you received: 450	SF emitters and switches are 1" ID, with body pieces being a bit bigger (my Venom body piece is also in the 1.125" range).
	2005 MR Vader B/B/W Graflex 2.0 yellow SF ASP Interceptor The administrator has disabled public write access. The following user(s) said Thank You: RichellM

Inner Diameter Question 2 weeks 2 days ago #62842

Kouri Offline Platinum Member Posts: 423 Thank you received: 352	Jaden Korr wrote: SF emitters and switches are 1" ID, with body pieces being a bit bigger (my Venom body piece is also in the 1.125" range). Just popping in to confirm these measurements based on my own ASP build.
	The administrator has disabled public write access. The following user(s) said Thank You: RichellM

Inner Diameter Question 2 weeks 1 day ago #62856

madsci954 Offline New Member Posts: 12 Thank you received: 4	Thanks guys, I got all the parts I need ordered.
	The administrator has disabled public write access.

Inner Diameter Question 2 weeks 1 day ago #62889

RichellM Offline Senior Member Posts: 65 Thank you received: 21	Khang wrote: All SF sabers should have a 1.127" ID. For my installs, I've been using 1.11" chassis from Shapeways. Which Chassis, specifically?
	The administrator has disabled public write access.

Inner Diameter Question 2 weeks 19 hours ago #62929

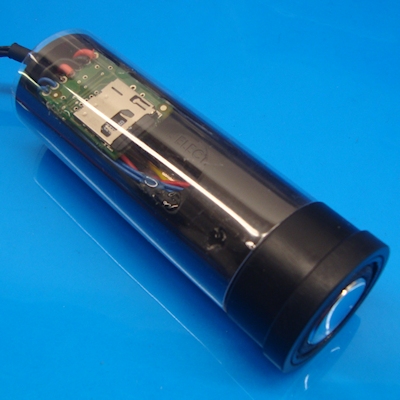

ToyKeeper Offline Senior Member Posts: 54 Thank you received: 50	I'm thinking of doing the same, and looking for a chassis for the battery, speaker, and driver board... Any idea if this TCSS chassis would fit? (pic links to product page)
	This is not the post you're looking for. Last Edit: 2 weeks 19 hours ago by ToyKeeper. The administrator has disabled public write access.

Inner Diameter Question 2 weeks 18 hours ago #62940

Jaden Korr
Offline
Platinum Member
"Remember, [Force] abilities are not inherently good or evil; it's how you use them." --Kyle Katarn
Posts: 963
Thank you received: 450

RichellM wrote:

Khang wrote:

All SF sabers should have a 1.127" ID. For my installs, I've been using 1.11" chassis from Shapeways.

Which Chassis, specifically?

I'm gong to assume one of the ones made by Darth Ryo. Pretty much the go to guy for 3D printed saber stuff.
ToyKeeper wrote:

I'm thinking of doing the same, and looking for a chassis for the battery, speaker, and driver board...

Any idea if this TCSS chassis would fit? (pic links to product page)

No, those are meant for 1.25" ID parts (like their MHSv1 parts), especially since the speaker holder is lipped and slightly wider than that (meant to catch on the end of the threads in the body pieces and be locked in with the threads from the pommel).

They do sell chassis disks for their MHSv2 parts (which are 1" ID), but they can only hold a battery pack or a NBv3, not both at the same time. You could use both if you have a longer saber and stack them end to end. I have a battery one left over from my Graflex 2.0 build (I shaved one down to fit into a 7/8" piece), and it fits fine into my ASP body with a bit of room to wiggle.
